Features

• 32A three-phase 22kw
• Can operate between 110V-450V
• Adjustable 6A-32A current
• Bluetooth 5.2
• Wireless network 2.4G
• 5m TPU cable
• IP65
• Remote control of applications

Dynamic Load Balancing

• Portable/wall mounted RCD: Type A AC 30mA+DC 6mA
• Standard: IEC62196
• Screen size: 1.54 inches Cable specifications:
• 5*6mm²+1*0.75mm²/2*0.5mm²
• Warranty: 2-year warranty Electrical Protection:

Leakage Protection

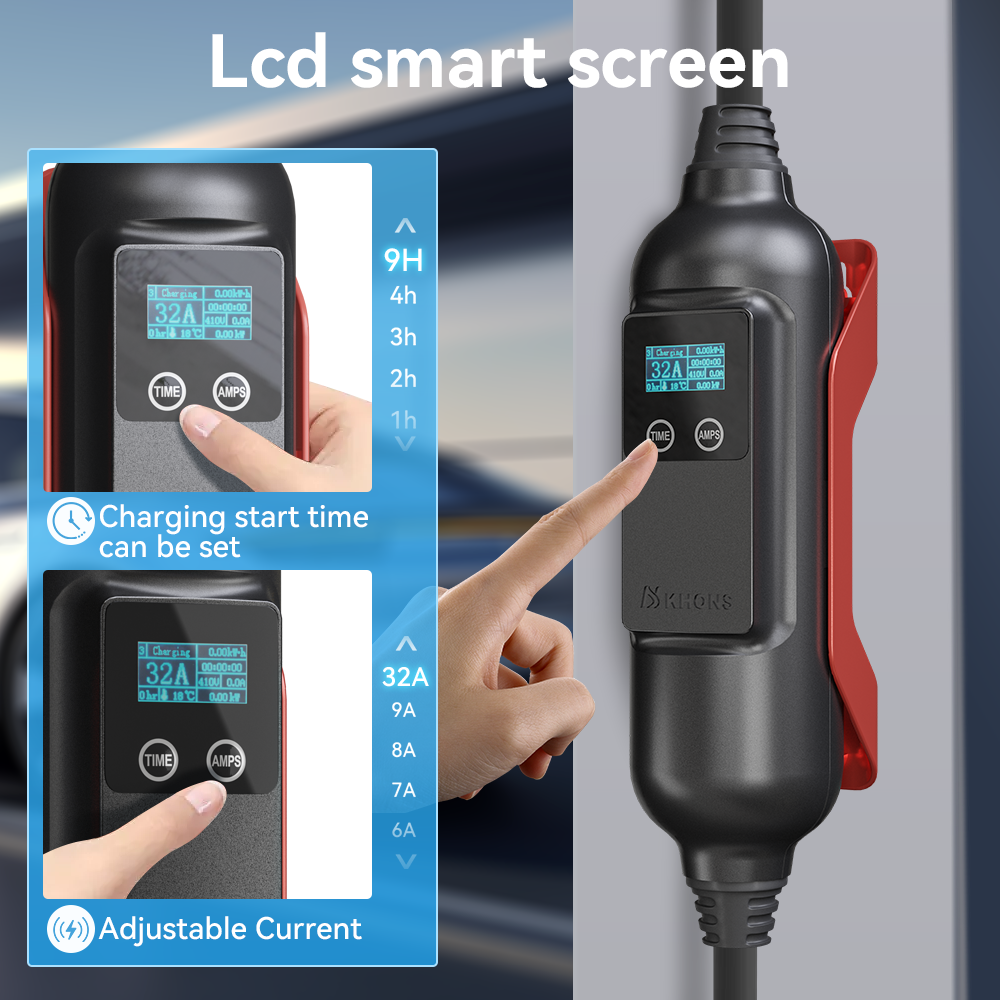

Lightning protection Our EV charger are made of TPU cable material, which is lighter, has a longer lifespan, higher hardness, better temperature resistance, and better wear resistance than traditional TPE cables Usage: 1. First charging method: Insert the plug into the socket, then remove the phone, download the application, and connect the device through WiFi and Bluetooth. After successful connection, adjust the current and schedule charging time through your phone. Then insert the plug into the vehicle and start charging. 2. The second charging method is to insert the plug into the socket, set the required charging current through the "AMPS" button on the device, press the "TIME" button to set the charging start time (can be set to 1h-9h), then insert the plug into the vehicle and start charging.
